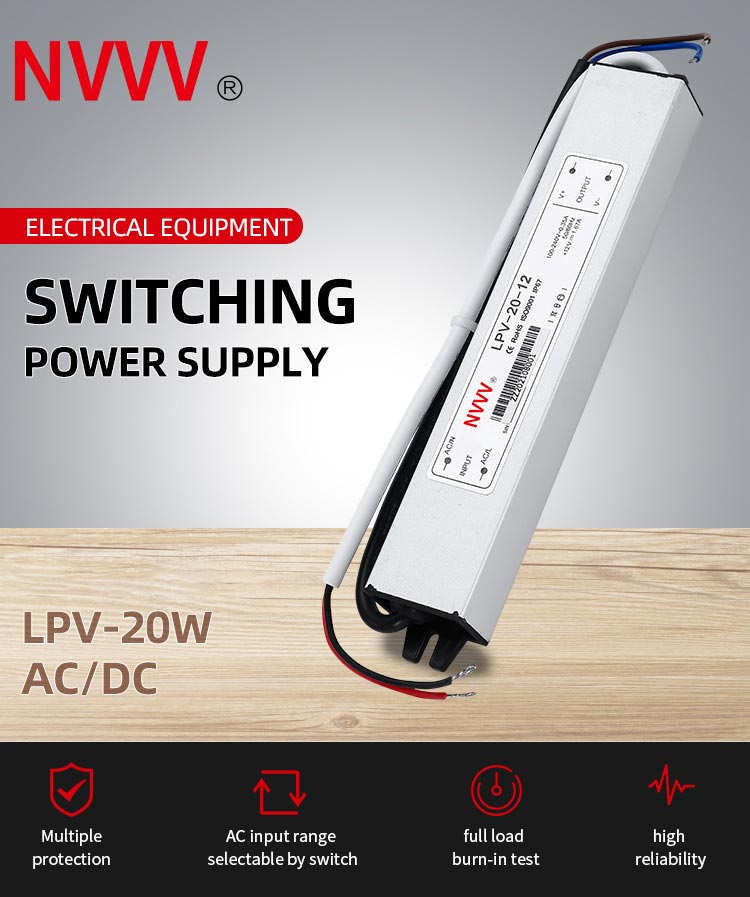

90~370VAC input range
Metal case, IP67/design for indoor or outdoor installations
Internal gluing
Constant current design
Suitable for ED street lighting and outdoor LED lighting
Can withstand 300VAC surge input for 5 seconds, with IP67 level full protection, and passed the LPS (limited power supply) test, low cost, high reliability, sold in more than 100 countries around the world.
Metal safety protection shell, heat dissipation performance is stronger, the internal circuit board original upgrade is more stable, more powerful, high quality quality components, to ensure stable output.
| Project | Technical index | ||||
| Output | DC voltage | 12V | 24V | ||
| Rated current | 1.67A | 0.84A | |||
| Rated power | 20W | 20.2W | |||
| Ripple and noise ① | ＜120mV | ＜150mV | |||
| Voltage Precision | ±5% | ||||
| Load adjustment rate | ±2% | ||||
| Linear adjustment rate | ±1% | ||||
| Starting and rising time | 500ms、20ms、16ms ：115VAC 500ms、20ms、50ms ：230VAC | ||||
| Input | Voltage range/ frequency | 90-264VAC 47Hz～63Hz；127VDC～370VDC | |||
| Efficiency (typical)② | ＞81% | ＞83% | |||
| Working current | 0.55A/110VAC 0.35A/230VAC | ||||
| Impulse current | 220VAC： 60A | ||||

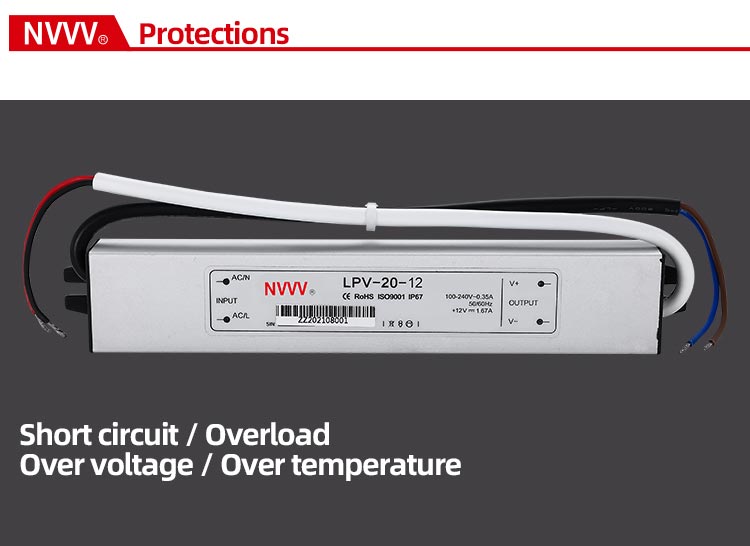

| Protect | Leakage current | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |||
| overload protection | 115% - 145% protection type: close the output, restart and automatically return to normal | ||||
| Environmental Science | Working temperature and humidity | -30℃～+70℃；20%～90RH | |||
| Storage temperature and humidity | -40℃～+85℃；10%～95RH | ||||
| Safety regulations | Withstand voltage | Input output:3KVAC 1 minute | |||
| Leakage current | input shell: 240VAC时 ＜2.5mA | ||||
| Isolation Resistance | Input output, input shell, output shell ：500VDC/100MΩ | ||||

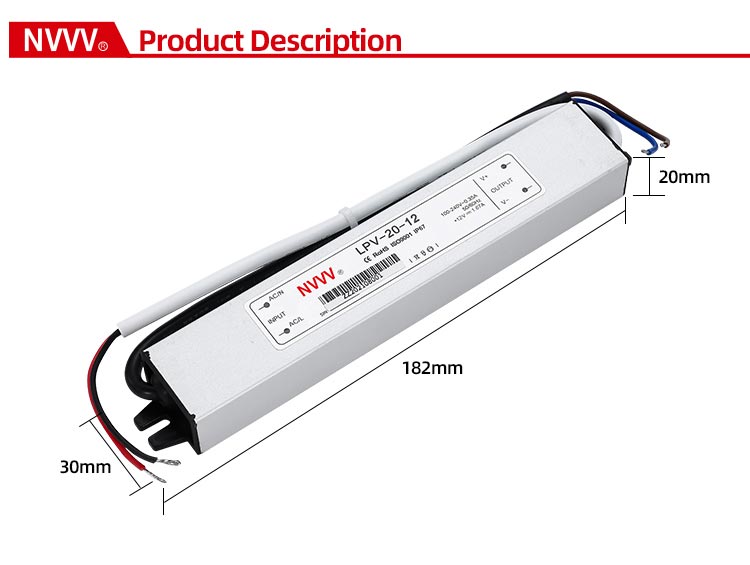

| Other | size | 162*29*20mm | |||
| Net weight / gross weight | 200/210g | ||||
Q: How many voltage you can supply?
A: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V, 48V, 50V, 60V, 110V
( Depend on items )
Q: How many current you can supply?
A: 0.5A, 1A, 1.5A, 2A, 3A, 4A, 5A, 6A, 10A, 15A, 20A, 30A, 40A, 50A, 60A, 80A.
Q: How about the quality?
A: We have the best professional and experienced engineer and strict QA and QCsystem.
Repair rate under 0.1%--0.2%
Q: What's your lead time?
A: The delivery time is 1-25days which depend on detail items and quantity.
Q: Can we be your distributor?
A: We are looking for distributor and agent all over the world for switching power supplyshould you any interest, please do feel free to send your message or inquiry
Q: What's kind of payment you accept?
A: T/T, L/C, D/P, D/ A, 0/ A, paypal, western Union, Money Gram
Q: Do you accept OEM ODM?
A: Yes
